Washdown heaters are used in Wastewater Treatment Plants, Coal Handling Areas, Food Processing Plants, Greenhouses, Foundries, Steel Mills, Cement Plants, Car Washes and Ship/Marine Docks.
Washdown heaters are available with varying heater-rated voltages, and meet a wide range of commercial heating applications.
Model Number
Heater Watts
Volts
Heater Phase
Total Amps
BTU/HR
Temp Rise
Motor Phase
Control Voltage
CFM
Weight
BWD25832
25kw
208
3
71.2
85,300
33
1
24
2400
120
BWD25232
25
240
3
61.7
85,300
33
1
24
2400
120
BWD25432
25
480
3
30.8
85,300
33
1
24
2400
120

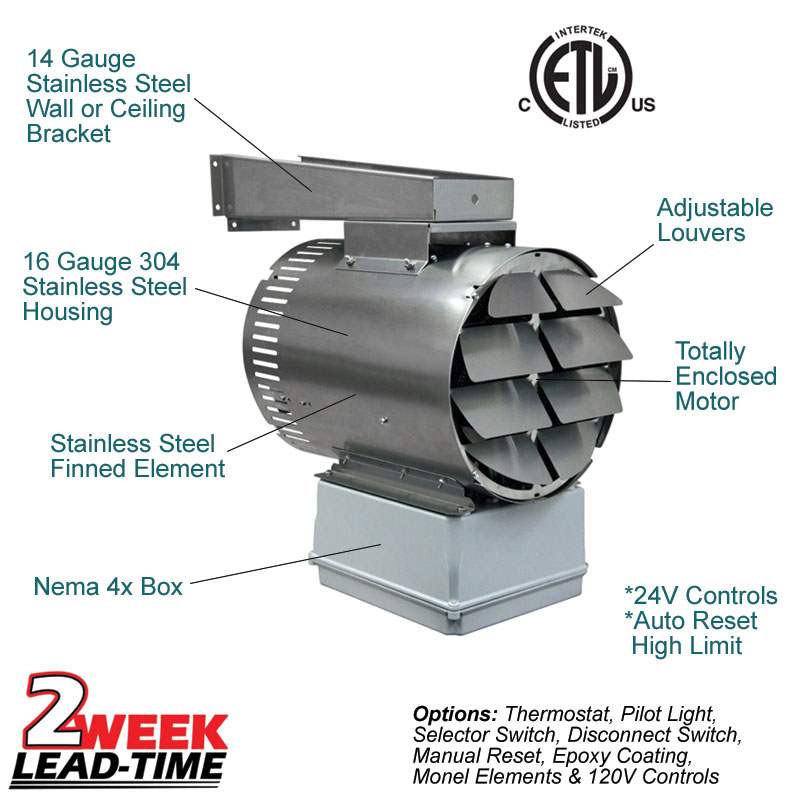

Washdown heaters offer corrosion protection in harsh environments with ability to be hosed down for cleaning
Completely enclosed ball bearing motor that is epoxy-coated for moisture and corrosion resistance
NEMA 4X junction box protects against water and dust
16-gauge 304 Stainless Steel cabinet for longer life and rust-resistance
24V controls improves safety with remote thermostat
316 Stainless Steel-finned elements for improved heat distribution
14-gauge Stainless Steel wall/ceiling bracket provides multiple options for mounting
Automatic temperature high reset limit activates if the temperature gets too high
