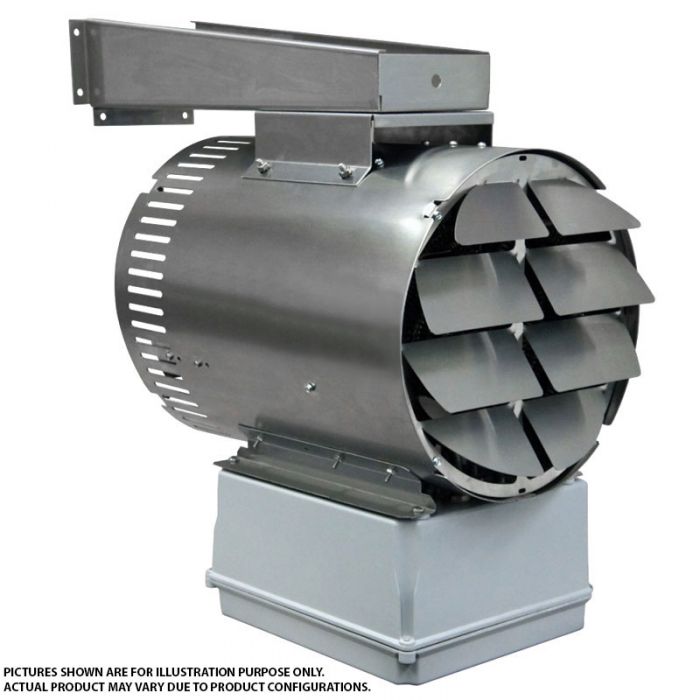

5kw Washdown Corrosion-Resistant Unit Heater
$4,094.70
CALL FOR AVAILABILITY SKU
BWD05
BTU/H: 17,060 Watts: 5kw Volts: 208-480 Temp Rise: 23 CFM: 700
Washdown heaters are used in Wastewater Treatment Plants, Coal Handling Areas, Food Processing Plants, Greenhouses, Foundries, Steel Mills, Cement Plants, Car Washes and Ship/Marine Docks.
Washdown heaters are available with varying heater-rated voltages, and meet a wide range of commercial heating applications.
| Model Number | Heater Watts | Volts | Heater Phase | Total Amps | BTU/HR | Temp Rise | Motor Phase | Control Voltage | CFM | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| BWD05812 | 5kw | 208 | 1 | 24.9 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05212 | 5 | 240 | 1 | 21.6 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05712 | 5 | 277 | 1 | 18.7 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05412 | 5 | 480 | 1 | 10.8 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05832 | 5 | 208 | 3 | 14.8 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05232 | 5 | 240 | 3 | 12.8 | 17,060 | 23 | 1 | 24 | 700 | 60 |
| BWD05432 | 5 | 480 | 3 | 6.4 | 17,060 | 23 | 1 | 24 | 700 | 60 |
- Washdown heaters offer corrosion protection in harsh environments with ability to be hosed down for cleaning
- Completely enclosed ball bearing motor that is epoxy-coated for moisture and corrosion resistance
- NEMA 4X junction box protects against water and dust
- 16-gauge 304 Stainless Steel cabinet for longer life and rust-resistance
- 24V controls improves safety with remote thermostat
- 316 Stainless Steel-finned elements for improved heat distribution
- 14-gauge Stainless Steel wall/ceiling bracket provides multiple options for mounting
- Automatic temperature high reset limit activates if the temperature gets too high
