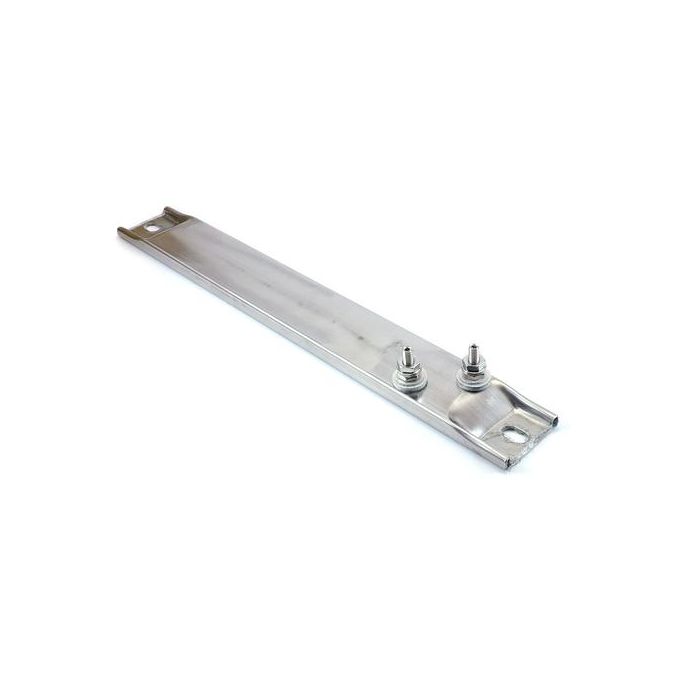

7.5 Inch Ceramic Strip Heater

3/8 x 1.50 x 7.5 Inch Ceramic Strip Heater 120/240V 150/200 watts with post terminals parallel to width at one end and standard mounting tabs.

Diameter: 0.370"
Watts: 150 or 200 watts
Voltage: 120 or 240
Length: 7.5"
Width: 1.5"

Ceramic strip heaters offer high temperature performance in a rugged, contamination resistant stainless steel sheath. They are bolt-in replacements for Chromalox, GE, Watlow, and other channel strip heaters.

They are available with a stainless steel sheath (for temperatures up to 1200°F), with or without mounting tabs, and can be manufactured with post terminals or a variety of lead options.

Ceramic strip heaters are constructed with a using chromium resistance wire coil inside a ceramic core which is then inserted in a metal sheath and filled with magnesium oxide for maximum heat transfer.  This construction provides the long life necessary for tough applications.
