6000W 72" Double Element Radiant Process Heater Assembly

6000W 72" Double Element Radiant Process Heater Assembly

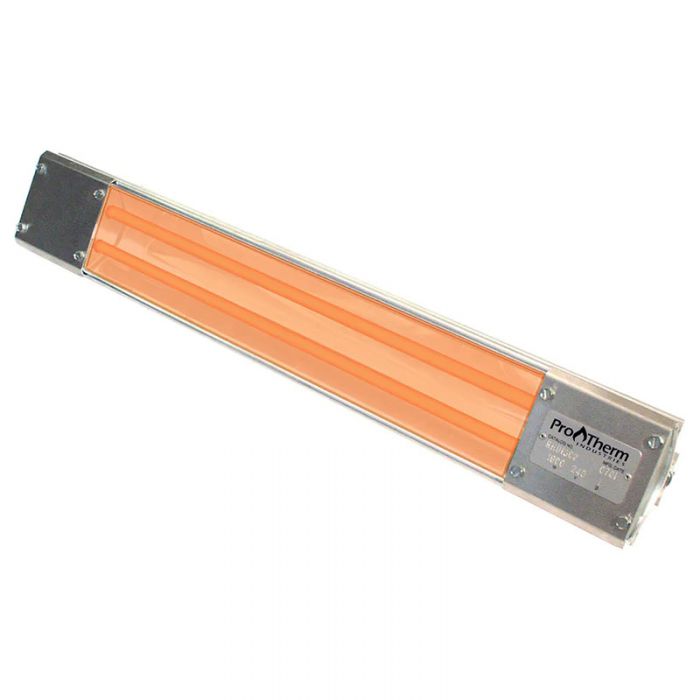

Radiant Heater Assemblies are metal sheathed Tubular Heaters mounted in an aluminum housing with a polished reflector. This package delivers infrared heat (2.5 - 3 micron range) to the surface being heated over a typical range of 500°F. The practical maximum temperature is 900°F.

• Rigid extruded aluminum housing
• Incoloy®800 sheathed tubular element (maximum sheath temp - 1500°F)
• Polished aluminum reflector
• Adjustable mounting bolts (3/8” Dia)
• 1/2” NPT tapped wiring holes
• Snap-on protective grill available
