Product overview
Protherm BWH-D series high-temperature, heavily insulated heating tape is manufactured using premium Samox fiberglass, making it the ideal thermal solution for demanding laboratory and pilot-plant applications that require high-wattage output. This exceptionally flexible heating tape features a dual-element, multi-stranded resistance wire heating design that provides enhanced durability, structural longevity, and rapid thermal response times. Available in a wide variety of sizes, these insulated heating tapes deliver accurate, high-density heat exactly where your process requires it.
Note: A temperature controller is required for the safe and proper operation of this product.

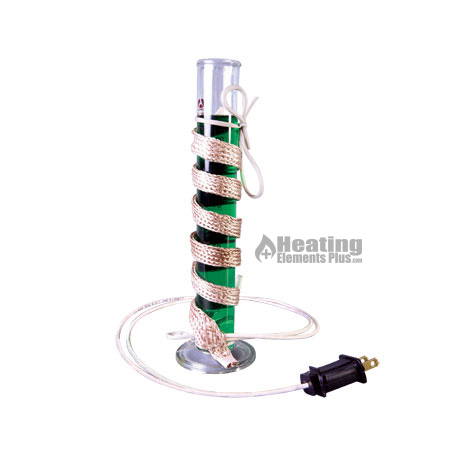

- Surface Compatibility: Engineered for safe and reliable use on both standard laboratory glassware and electrically conductive metal surfaces.

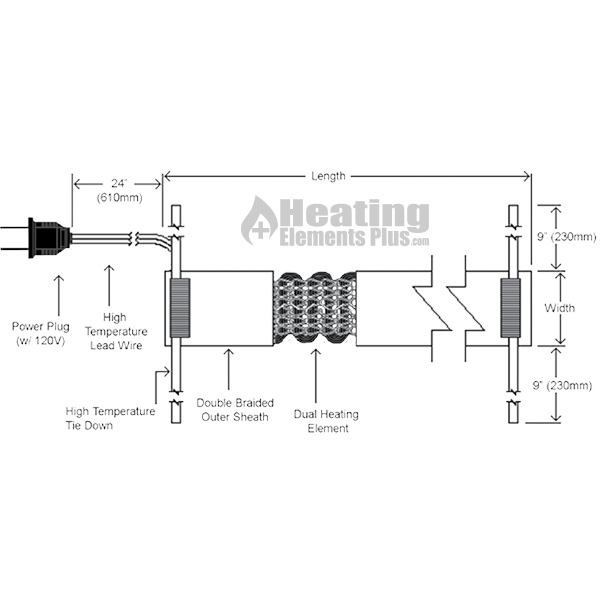

- Streamlined Installation: Each tape includes 9 in (230 mm) long, high-temperature tie-downs to ensure tight, secure surface contact and hassle-free installation.
Configuration
| Width | 1" (25 mm) |
|---|---|
| Length | 2' (0.6 m) |
| Voltage | 120 V AC |
Installation and use
Install this heater in accordance with the supplied instructions and use a compatible temperature-control method wherever the application requires controlled surface temperature. Maintain full contact with the heated surface and do not overlap the heated section unless the product instructions explicitly permit it.
