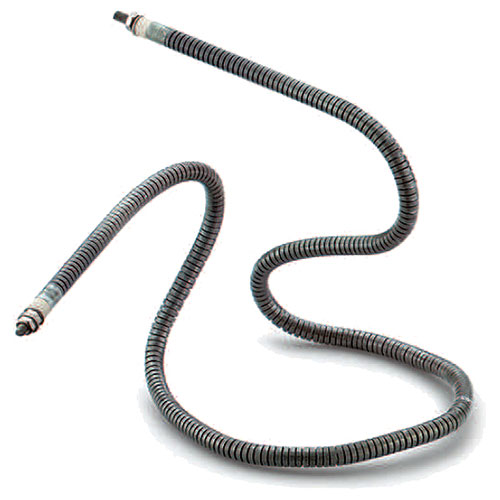

8mm x 26″ Flex Tube Heater 240v 1380w M4 Connection

Part Number: 6300650

Availability: Ships in 2–3 days

$253.61

8.0 mm Round Hotflex — 650 mm overall length, 240 V, 1380 W, M4 threaded pins. SKU 6300650.

Voltage
240v
Wattage
1380w

Custom heaters are non-returnable.

Overview

This Hotset Hotflex flexible tubular heater is the exact stock configuration identified by SKU 6300650. Select by cross-section, overall length, voltage, wattage, groove geometry, bend requirement, and termination.

Technical Specifications

Cross-section 8 mm round
Overall length 650 mm
Heated length Not separately published
Voltage 240 V
Wattage 1380 W
Calculated current 5.75 A
Calculated resistance 41.74 Ω
Approx. sheath loading 8.45 W/cm²
Minimum bend radius 10 mm minimum internal radius
Termination M4 threaded pins

Construction

Round flexible tubular construction intended to be formed into a correctly sized tool groove. Do not substitute a different diameter or termination solely because length and wattage are similar.

Electrical

Calculated current and resistance are independent QA values derived from the listed voltage and wattage. Confirm controller and circuit capacity for the installation.

Dimensions

Overall length is the manufacturer stock length. A separate heated length and cold-section dimension were not published for this stock record and are not inferred.

Bending / Installation

Respect the listed minimum internal bend radius and manufacturer groove geometry. Form progressively, avoid repeated sharp reverse bends, and maintain uniform support and heat transfer.

Termination / Leads

M4 threaded pins. External lead hardware and connection protection must suit the application.

Typical Applications

Appropriate for compatible molds, dies, hot-runner tooling, and formed process-heating channels within the exact product ratings.

Documentation

Current manufacturer family and stock table: https://www.cetal.com/flexible-tubular-heater-hotflex.
