0.875″ ID x 4.12″ Coil Heater 800w 240v SCH0092

Part Number: CL87-041A

Availability: Ships in 2–3 days

$682.30

  • Internal Diameter: .875″
  • Coil Length: 4.12″
  • Watts: 800
  • Volts: 240
  • Leads: 36″
  • Braid: Stainless steel

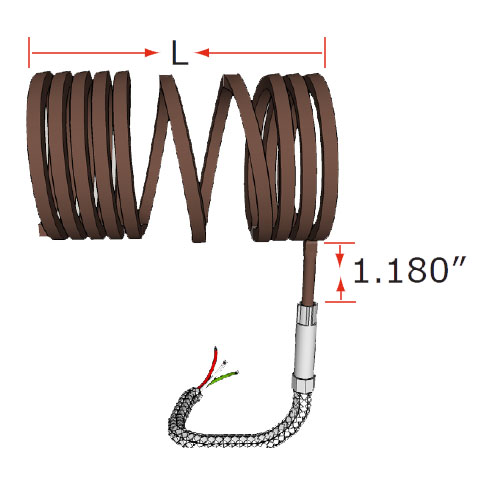

  • Lead Orientation: CL1
  • Thermocouple: Type J
Voltage
240v
Wattage
800w

Custom heaters are non-returnable.

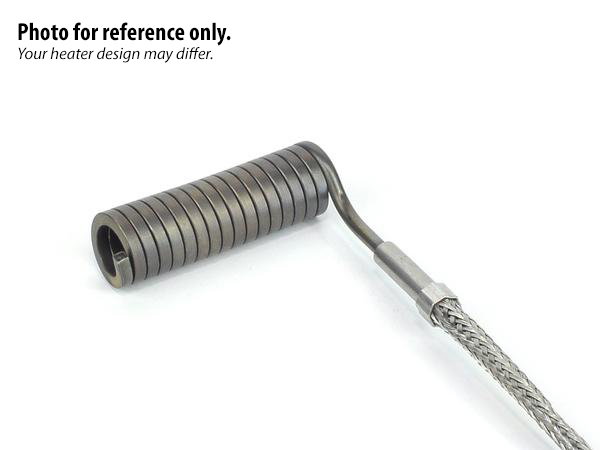

Compare this coil heater to part number SCH0092. The coil heater inner diameter is 7/8″, and the coil heater length is 4.12″. The electric coil heater leads are 36″ long with stainless steel overbraid. The coil heater is made for 240 volts and 800 watts. This Viper coil heater has a .13″ by .13″ square cross section. This coil heater has a CL1 orientation like the coil heater in the picture. Type J thermocouple.
