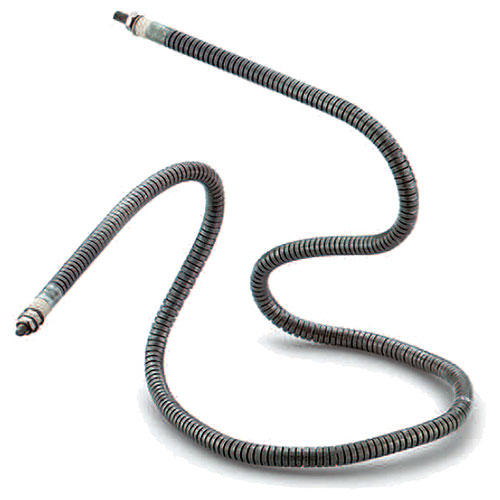

Flexible Tube Heater – 8.500 mm × 1100.00 mm – 230 volts 2930 watts – 6101100

Part Number: 6101100

Availability: Ships in 2–3 days

$276.23

8.5 mm Round Hotflex — high output — 1100 mm overall length, 230 V, 2930 W, M2.5 threaded pins. SKU 6101100.

Custom heaters are non-returnable.

Overview

This Hotset Hotflex flexible tubular heater is the exact stock configuration identified by SKU 6101100. Select by cross-section, overall length, voltage, wattage, groove geometry, bend requirement, and termination.

Technical Specifications

Cross-section 8.5 mm round
Overall length 1100 mm
Heated length Not separately published
Voltage 230 V
Wattage 2930 W
Calculated current 12.74 A
Calculated resistance 18.05 Ω
Approx. sheath loading 9.97 W/cm²
Minimum bend radius 10 mm minimum internal radius
Termination M2.5 threaded pins

Construction

Round flexible tubular construction intended to be formed into a correctly sized tool groove. Do not substitute a different diameter or termination solely because length and wattage are similar.

Electrical

Calculated current and resistance are independent QA values derived from the listed voltage and wattage. Confirm controller and circuit capacity for the installation.

Dimensions

Overall length is the manufacturer stock length. A separate heated length and cold-section dimension were not published for this stock record and are not inferred.

Bending / Installation

Respect the listed minimum internal bend radius and manufacturer groove geometry. Form progressively, avoid repeated sharp reverse bends, and maintain uniform support and heat transfer.

Termination / Leads

M2.5 threaded pins. External lead hardware and connection protection must suit the application.

Typical Applications

Appropriate for compatible molds, dies, hot-runner tooling, and formed process-heating channels within the exact product ratings.

Documentation

Current manufacturer family and stock table: https://www.cetal.com/flexible-tubular-heater-hotflex.
