12L x 06W Removable Hub Insulation Jacket

Part Number: IH1206

Availability: Ships in 3-5 days

$213.85

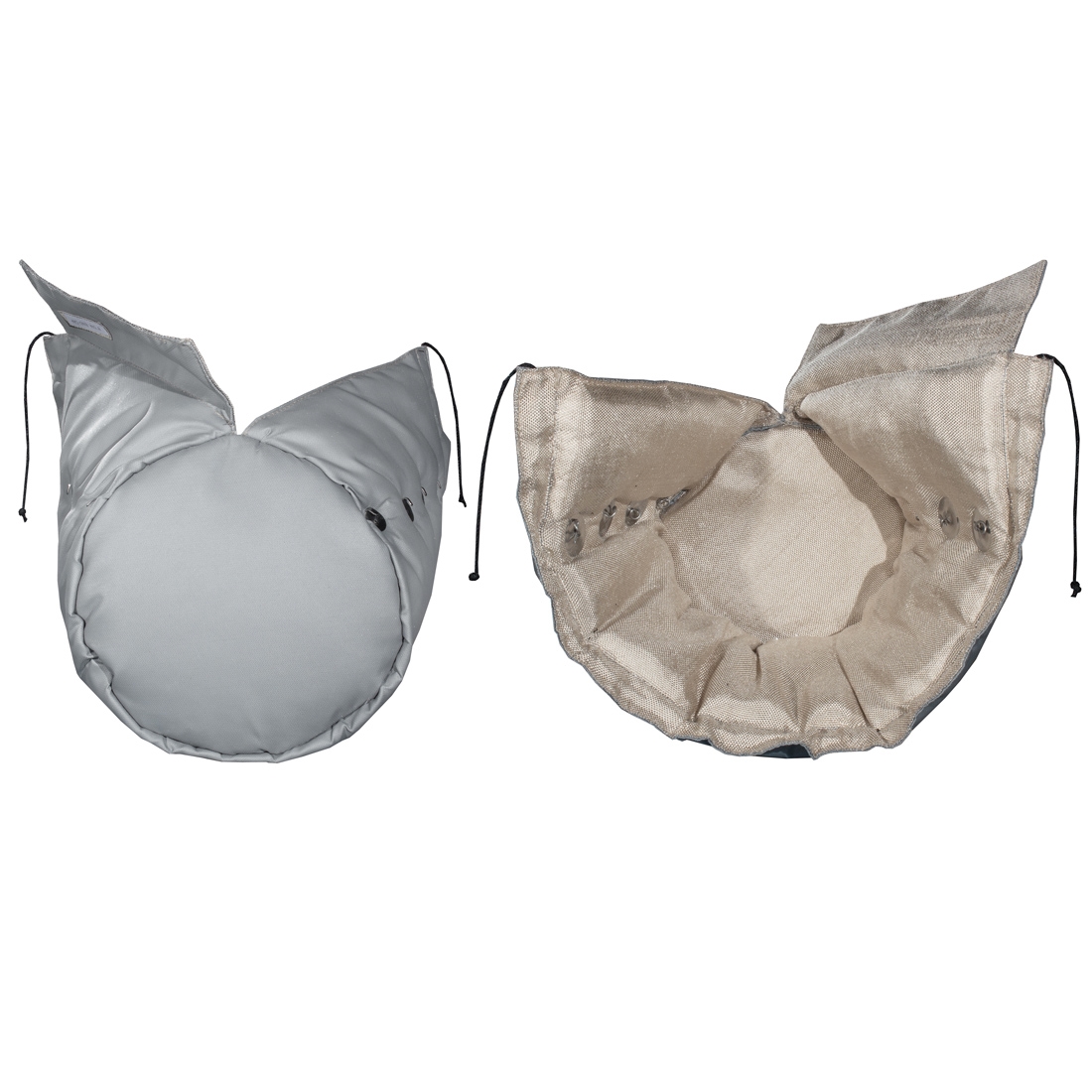

Hub Insulation Jacket

ISOCOVERS Insulation Systems offer a broad base of superior, energy-saving solutions that conserve energy, preserve process temperatures and improve workplace safety. ISOCOVERS Insulation Systems are used on various applications within the process industry where heat conservation and process temperature are concerns.

ISOCOVERS ISO-HUB Insulation Jackets are suitable for end fittings in piping systems, including steam traps, end caps, blind flanges, or the like.

Specifications

Item
Valve Insulation
Fastening system
Hook, SS Wire
Length
12in / 305mm
Approx. R factor
. 48
Width
06in / 152mm
Max temp / continuous use
900F / 483C
800F / 426C
Thickness
3in / 76mm
Color
Grey
Insulation material
Mineral Wool, Fiberglass
Weight
3.88lbs / 1.76kg
Jacket material
Silicone Coated Fiberglass Cloth
Fit
Universal
Diameter range
10in-12in / 254mm-305mm
Circumference range
31in-38in / 787mm-965mm

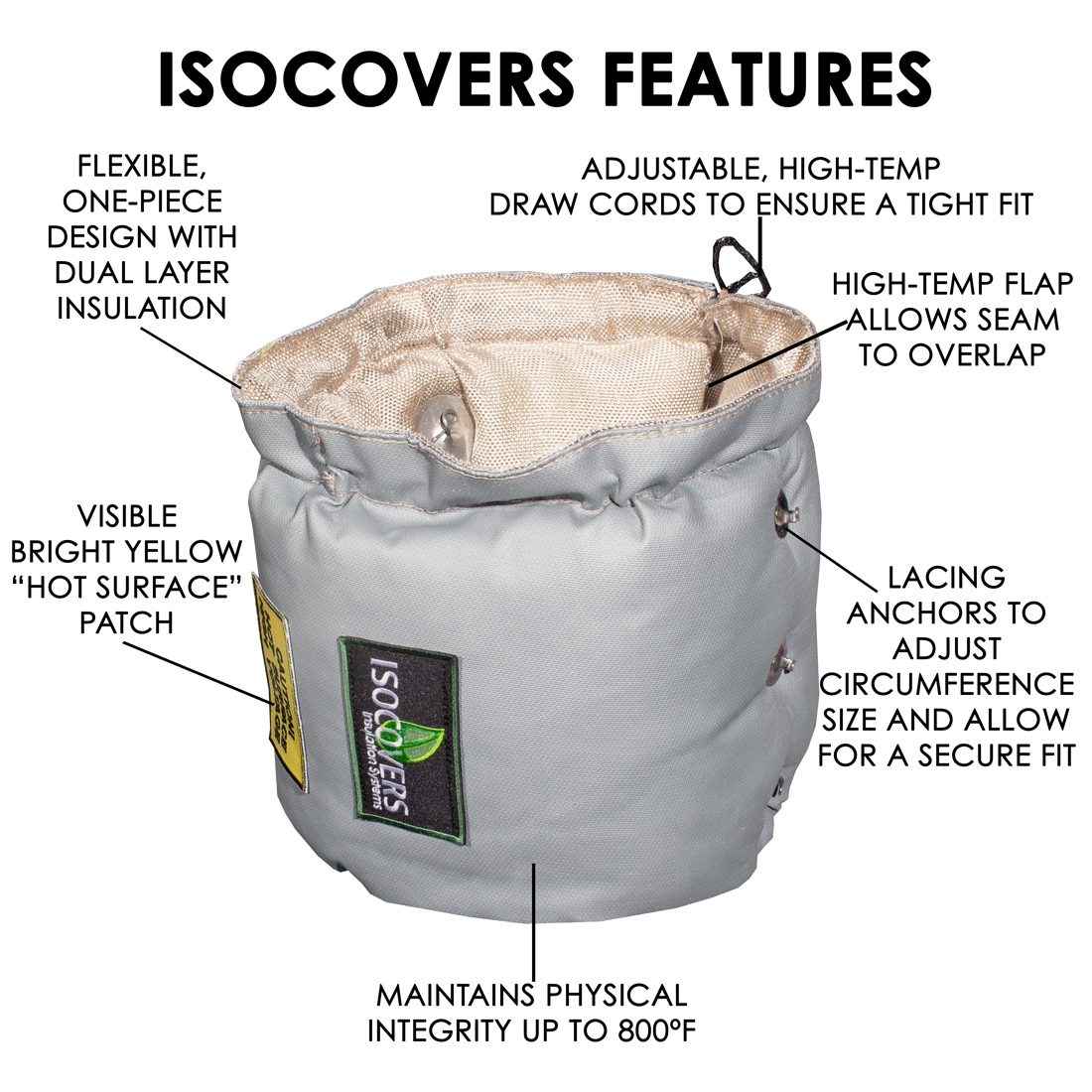

Features & Benefits:

  • ISOCOVERS Insulation Systems create a SAFER WORKING ENVIRONMENT for your employees and increase equipment lifespan by protecting key components from high temperatures.
  • ISOCOVERS Insulation Systems are made with STANDARD, READILY AVAILABLE, OFF-THE-SHELF COMPONENTS that can be easily configured for almost any application requirement.
  • ISOCOVERS Insulation Systems are COMPLIANT WITH OSHA SAFE-TOUCH STANDARDS for exposed heated surfaces (if there is a potential for injury).
  • ISOCOVERS Insulation Systems deliver an INCREASED CONTROL OF PROCESS TEMPERATURES to enhance production capacity by reducing the amount of energy needed to keep equipment running at high temperatures.

APPLICATIONS:

  • End caps, butt weld fittings
  • Caps, socket weld
  • End caps, NPT-threaded
  • Screwed ends, threaded

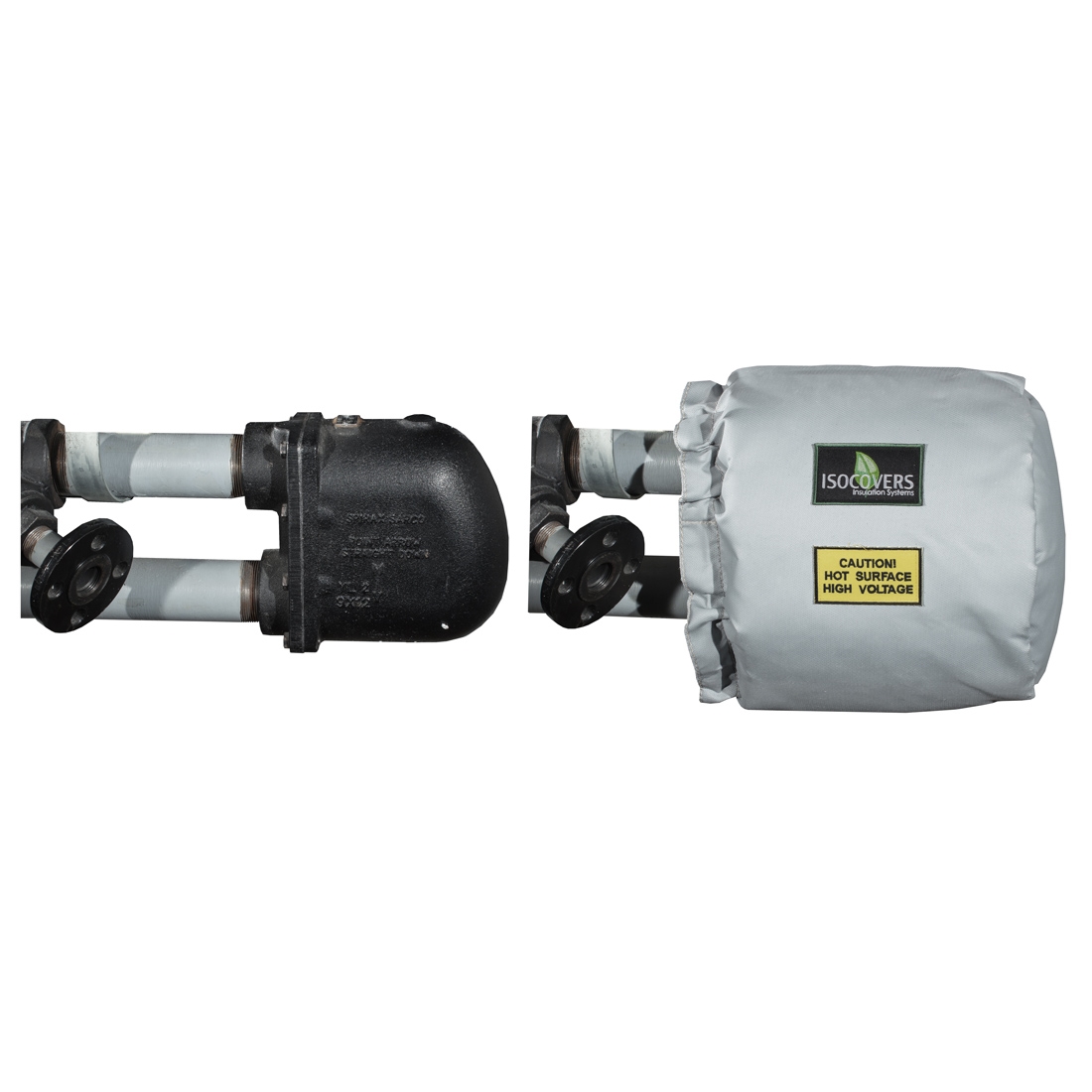

  • Float & thermostatic steam traps
  • Blind flanges

Measuring & installation videos

Watch the manufacturer’s instructions for this jacket.

How to measure for an ISOCOVERS hub jacket
