0.750″ ID x 1″ Coil Heater 250w 240v SCH0106

Part Number: CL075-010F

Availability: Ships in 2–3 days

$407.82

  • Internal Diameter: 0.750″
  • Coil Length: 1.000″
  • Watts: 250
  • Volts: 240
  • Leads: 72″
  • Braid: Stainless steel
  • Lead Orientation: CL1
  • Unheated Length: 5″ at lead
  • Thermocouple: None
Voltage
240v
Wattage
250w

Custom heaters are non-returnable.

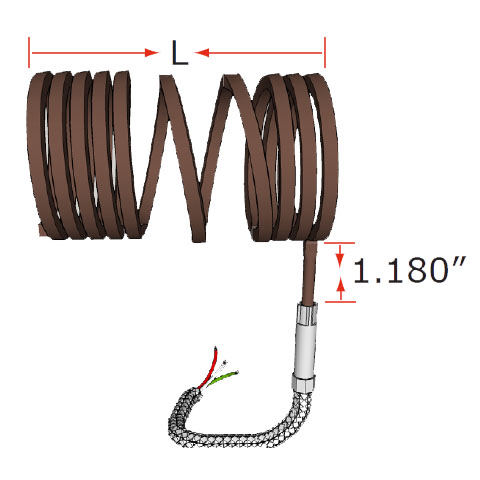

Compare this coil heater to part number SCH0106. The coil heater inner diameter is 0.750″, and the coil heater length is 1.000″. The electric coil heater leads are 72″ long with stainless steel overbraid. The coil heater is made for 240 volts and 250 watts. This Viper coil heater has a .13″ by .13″ square cross section. This coil heater has a CL1 orientation like the coil heater in the picture. 5″ unheated length at lead.
