Legacy Series 25 Controls

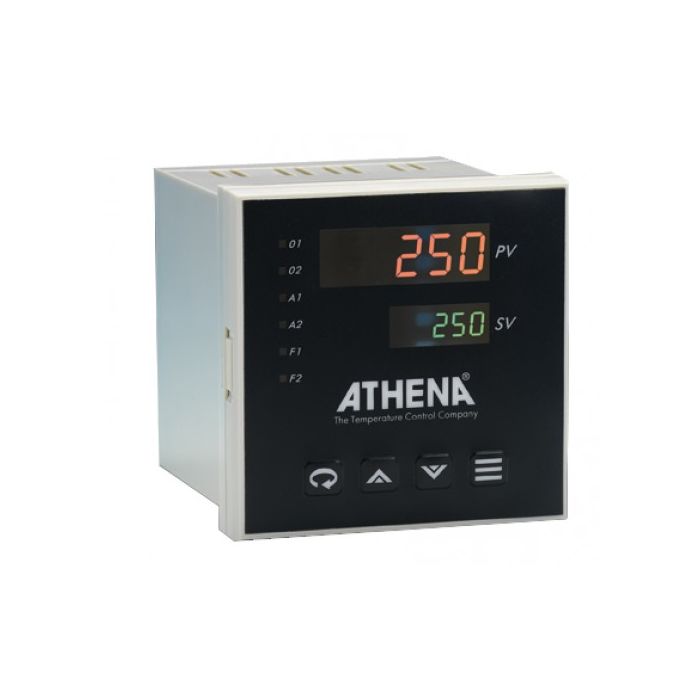

The Athena Legacy 25 is a 1/4 DIN panel mounted, auto-tuning control that can be used for precise control of a single loop with two independent outputs. The control accepts thermocouple, RTD, voltage, or current input. RS-232 or RS-485 communications are available, and two digital LED displays provide visual indication of various control functions.

• User-Selectable Ramp to Setpoint
• Bumpless Auto/Manual Transfer
• NEMA 4X (IP65) Dust and Splash-Proof Front Panel
• On/Off through Full PID Operation (P,PI,PD,PID)
• Auto-Tuning, Heat or Cool
• Adjustable Hysteresis & Heat/Cool Spread
• Field-Configurable Process, Deviation, or Latching Alarms
• Remote Setpoint Select Option
• Dual Output/Dual Alarm Capabilities
• Optional Process Variable Retransmission
• cUL and CE Approvals
