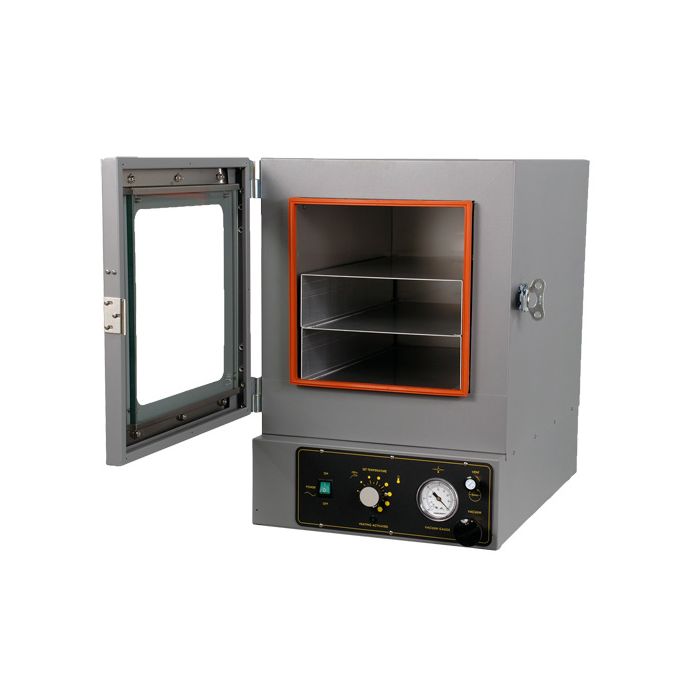

SVAC1E Economy Vacuum Oven, 0.6 Cu.Ft.
The SVAC1E is durably constructed with seamless welds and strong bracing. All of our vacuum ovens are built with a stainless steel chamber for exceptional durability. Our unique cross-flow ventilation forces inert gas to fill the entire chamber.
Price Includes Freight & Pallet.
Can take 4-6 weeks for delivery.
The SVAC1E is durably constructed with seamless welds and strong bracing. All of our vacuum ovens are built with a stainless steel chamber for exceptional durability. Our unique cross-flow ventilation forces inert gas to fill the entire chamber.
The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. A selection of gaskets (for specific applications) and a small bench top footprint increase the versatility of these ovens.
Please note that this vacuum oven does not include a pump or related accessories.
Note: Replaces model 1407
- Cross Ventilation Air Flow Design
- Achieve Impressive Vacuum Levels
- Size 0.6 Cu.Ft.
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
| MODEL | SVAC1E | |
| Shelving | 2 Supplied | |
| Heat-up (min) | 90 minutes at 150°C | |
| Temperature Uniformity | +/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C | |
| Temperature Range | Ambient +/- 15°C to 210°C | |
| Exterior Dimensions WxDxH in. (cm) | 15.5 x 19 x 22.5 (39.4 x 48.3 x 57.2) | |
| Interior Dimensions WxDxH in. (cm) | 9 x 12 x 9 (22.8 x 30.4 x 22.8) | |
| Capacity | 0.6 Cu.Ft. (17 L) | |
| Nominal Voltage 50/60HZ (V) | 115/230 | |
| Maximum Energy Consumption (W) | 600/575 | |
| Vacuum Range | inch Hg (-3.0 to -29.9), kPa (-10 to -101), mbar (-101 to -1010) | |
| Display Vacuum Range (Analog Dial Gauge) | inch Hg (0 to 30), cm Hg (0 to 76) | |
All specifications are determined by using average values on standard equipment at an ambient temperature of 25°C (77°F) and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time.
