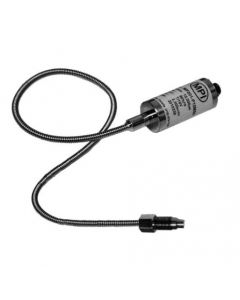

Narrow Space Transmitters
28” flexible capillary with stainless armour coating.
This provides thermal isolation and installation flexibility in space restricted areas.
|
Features:
- Fluid Filled System
- Standard 4-20mA
- 6pin Bayonet Connector
- 28” Flex Hose
- 0.5% combined error
- 80% Output Calibration
- Interchangeable with all Competitor’s models
- 750°F (400°C) Rating
- Ranges from 5000 to 30,000 psi
- Standard Inconel Diaphragm
|
Options:
- Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
- Connector option - 8 pin - 6 pin-CANNON
- 12" stem
- 30" Flex hose (MR200)
- Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
- Thread Options
- Fill Options - Mercury Free & NaK
Call 615-834-4044 to order transducers with options not listed below.
|
