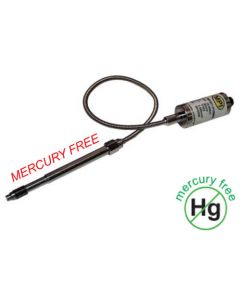

Mercury Free - Rigid Stem + Flex

The diaphragm transmits pressure through the fluid filled capillary for high temperature stability. Four active arm wheatstone bridge strain gage ensures high accuracy. The rigid stem makes installation fast and easy. Food grade - mercury free.

18” flexible capillary with stainless armour coating. This provides further thermal isolation and installation flexibility.

Features:

Mercury Free Fill
Standard 4.20mA
6pin Bayonet Connector
6, and 12” Stems
0.5% combined error
80% Output Calibration
Interchangeable with all Competitor’s models
750°F (400°C) Rating
Ranges from 1500 to 20,000 psi
Standard Inconel Diaphragm

Options:

Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
Connector option - 8 pin - 6 pin-CANNON
12" stem
30" Flex hose (MF200)
Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
Thread Options

Call 615-834-4044 to order transducers with options not listed below.
