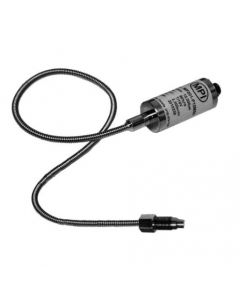

Narrow Space Transducers

28” flexible capillary with stainless armour coating.

This provides thermal isolation and installation flexibility in space restricted areas.

Features:

Fluid Filled System
Standard 3.33mV/V
6pin Bayonet Connector
28” Flex Hose
0.5% combined error
80% Output Calibration
Interchangeable with all Competitor’s models
750°F (400°C) Rating
Ranges from 5000 to 30,000 psi
Standard Inconel Diaphragm

Options:

Output option - 2.5mV/V, 4-20mA, 0-5VDC & 0-10VDC
Connector option - 8 pin - 6 pin-CANNON
12" stem
30" Flex hose (MR200)
Optional diaphragms - Hastelloy, Titanium Nitride, Inconel Tip & Diamond Particulate
Thread Options
Fill Options - Mercury Free & NaK

Call 615-834-4044 to order transducers with options not listed below.

Narrow Space Transducer 5000psi 28" Flex
$825.00
Narrow Space Transducer 10,000psi 28" Flex
$825.00
Narrow Space Transducer 20,000psi 28" Flex
$880.00
Narrow Space Transducer 30,000psi 28" Flex
$880.00
