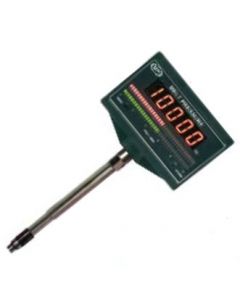

Digital Gauge - Rigid Stem

Features:

• Complete Melt Pressure + Alarm System
• Large 5-Digit Digital Display (0.8”High)
• Alarm Relay (NO/NC 240VAC, 5A)
• LED Bar Graphs - Process & Set Value
• Repairable Sensor
• 90-260VAC Power
• 6” Stem
• 30” Flex Hose (MG200)
• 1% Combined Error
• 750°F (400°C) Rating
• Ranges from 0-500 to 0-20,000psi
• Standard Diaphragm - Inconel
• Process Value Re-Transmission ( 4-20mA)
• Standard Thread (1/2-20UNF)

Options:

• Re-Transmission Options: 0-5, 0-10VDC & 0-20mA
• 12" Stem
• 60" Flex Hose (MG200)
• Optional Diaphragms: Hastelloy, Titanium Nitride, Incoloy Tips & Threads
• Threads (M18x1.5)
• Power: 12-24VDC
• Mercury FREE

Call 615-834-4044 to order with options not listed below.
