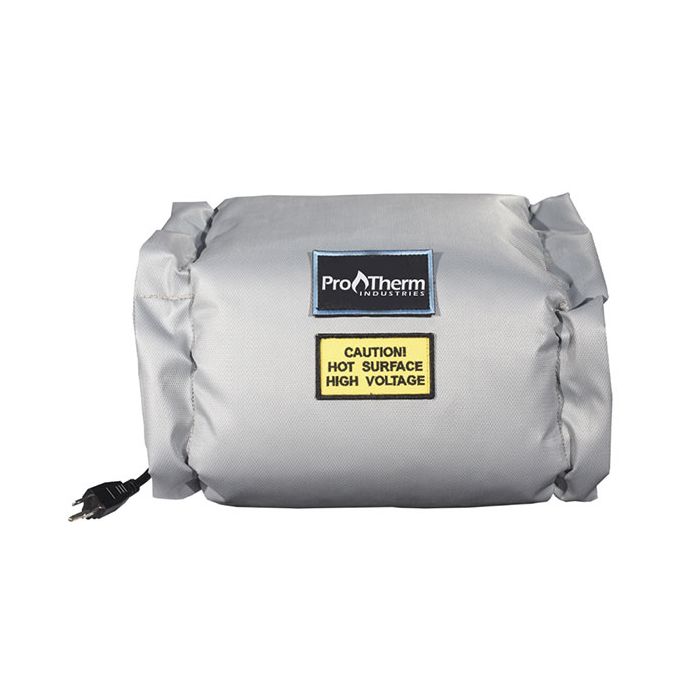

Heat Trace Pipe Freeze Wrap 60Lx12W

$423.24

Ships in 3-5 days

SKU

FPW6012

Flange and Pipe Insulation, Length 60 In., Width 12 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ''R'' Factor .48, Max. Temp. 200 Degrees F, Color Gray

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

How To Measure

Details

ITEM	Frost Protection Insulation	FASTENING SYSTEM	Lacing Anchor, S.S. Wire
LENGTH	60in / 1524mm	APPROX "R" FACTOR	.48
WIDTH	12in / 305mm	TEMPERATURE RANGE	-40ºF / -40ºC 200ºF / 93ºC
THICKNESS	3in / 76mm	COLOR	Gray / Grey
INSULATION MATERIAL	Mineral Wool	WEIGHT	9.25lbs. / 4.20kg
JACKET MATERIAL	Silicone	FIT	Universal
DIAMETER RANGE	14in-17in / 356mm-432mm	CIRCUMFERENCE RANGE	44in-53in / 1118mm-1346mm
WATTS	180	AMPS	1.5
VOLTAGE	120, 240 or 12	POWER CORD TYPE
HEATING CABLE LENGTH	240in / 6096mm	COLD LEAD LENGTH	98in / 2489mm

Heat Trace Pipe Freeze Wrap 60Lx12W
