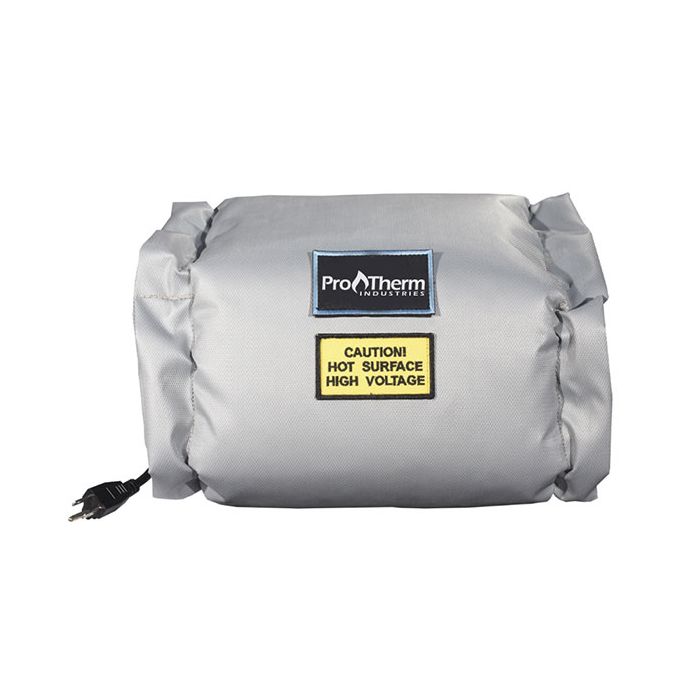

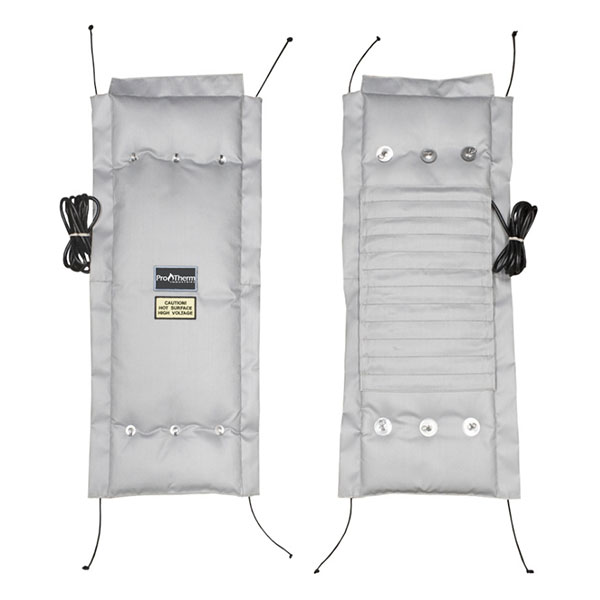

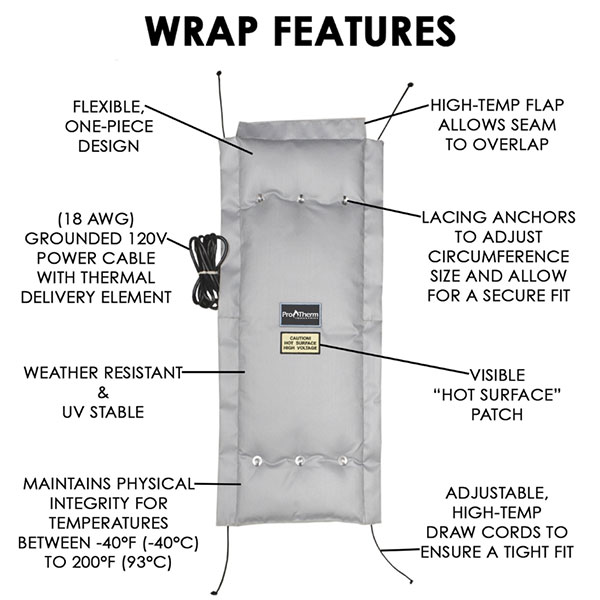

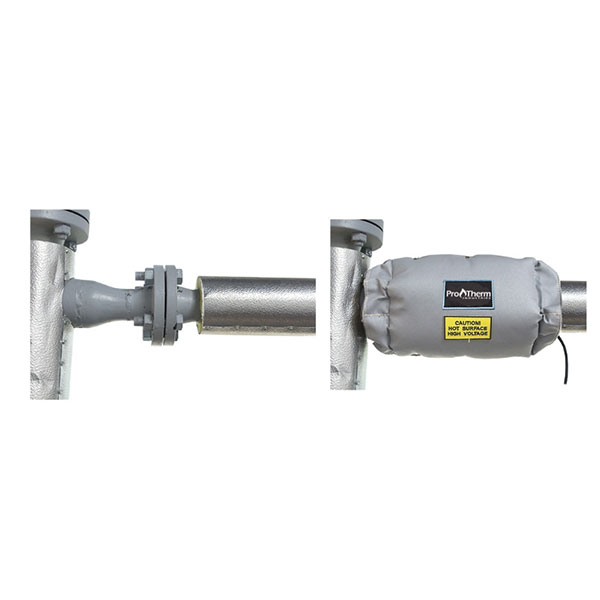

Heat Trace Pipe Freeze Wrap 48Lx24W

$562.99

Ships in 3-5 days

SKU

FPW4824

Flange and Pipe Insulation, Length 48 In., Width 24 In., Insulation Material Mineral Wool and Fiberglass, Jacket Material Silicone Coated Fiberglass Cloth, Fits Valve Type Universal, Thickness 2 In., Approx. ''R'' Factor .48, Max. Temp. 200 Degrees F, Color Gray

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

How To Measure

Details

ITEM	Frost Protection Insulation	FASTENING SYSTEM	Lacing Anchor, S.S. Wire
LENGTH	48in / 1219mm	APPROX "R" FACTOR	.48
WIDTH	24in / 610mm	TEMPERATURE RANGE	-40ºF / -40ºC 200ºF / 93ºC
THICKNESS	3in / 76mm	COLOR	Gray / Grey
INSULATION MATERIAL	Mineral Wool	WEIGHT	12.25lbs. / 5.56kg
JACKET MATERIAL	Silicone	FIT	Universal
DIAMETER RANGE	12in-14in / 305mm-356mm	CIRCUMFERENCE RANGE	38in-44in / 965mm-1118mm
WATTS	180	AMPS	1.5
VOLTAGE	120, 240 or 12	POWER CORD TYPE
HEATING CABLE LENGTH	240in / 6096mm	COLD LEAD LENGTH	98in / 2489mm
