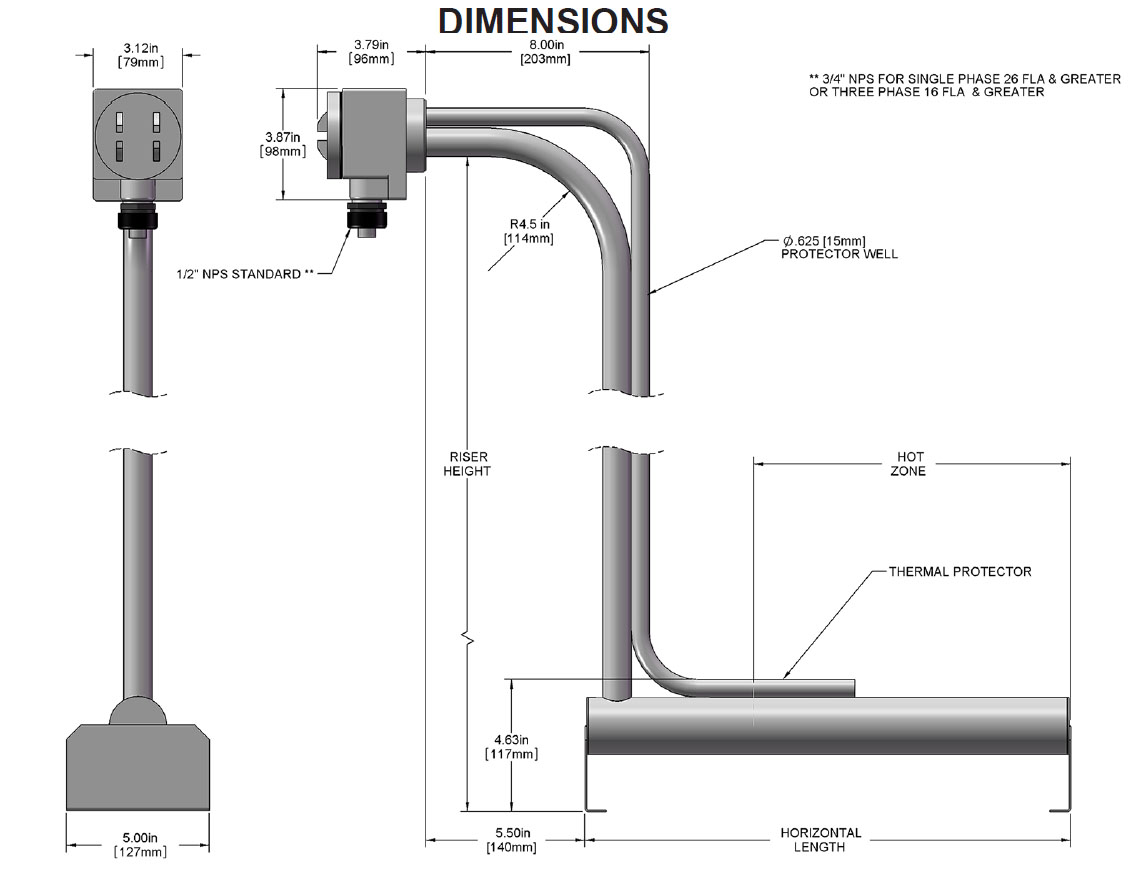

Derated L Shape Single Bayonet 3000 watt - 36" Horizontal - 50" Vertical

FEATURES

• Heavy wall metal sheaths available in steel, 304 stainless steel, 316 stainless steel and titanium.
• Watt densities up to 18 watts/square inch.
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
• Certification: cULus (except steel and 600 volts)

SPECIFICATIONS

• 3000 watts
• 240 or 480 volts

OPTIONS AVAILABLE (CONSULT FACTORY)

• Resettable thermal protectors require additional control components
• Lower watt densities for highly viscous solutions.
• Custom configurations and lengths
• Custom wire and conduit lengths
