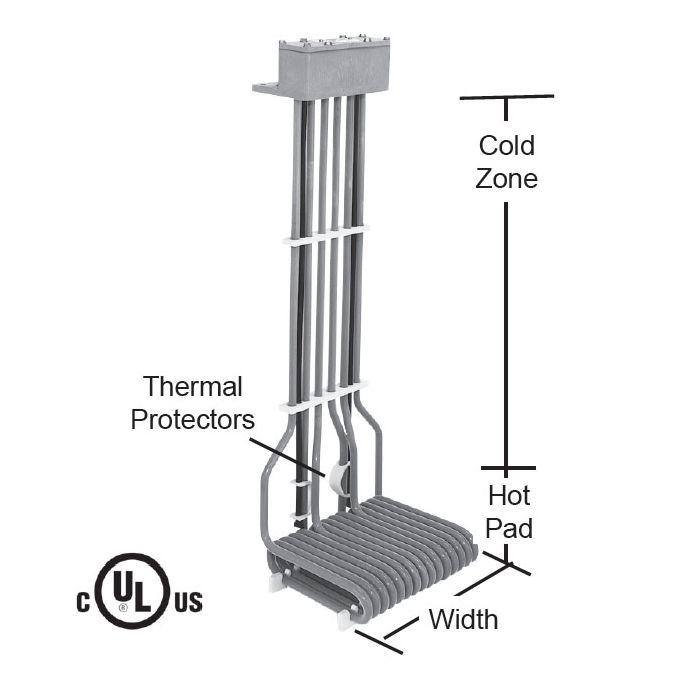

9000 watt L shape 3 element PTFE Bottom Heater - 23" Hot - 18" Overall

$2,967.84

CALL FOR AVAILABILITY

SKU

PRT-3ELF-23-18

9000 watt, single element, L shape, fluoropolymer, over the side heater. 23" hot zone, 10.5" wide and 18" overall length. Thermal protection options. 36" wire with conduit. 240 or 480 volt. 1 or 3 phase

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

Installation Guide

Details

Excellent chemical resistance to aggressive acids.

FEATURES

PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
Low watt density design 10 watts/square inch (1.5w/cm²).
Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
Certification: cULus. CE certified (except 600 volts).

SPECIFICATIONS

9000 watts
240 or 480 volt

OPTIONS AVAILABLE

Resettable thermal protectors
Polypropylene guards (sold separately)
Custom configurations and lengths - Call us
Custom wire and conduit lengths - Call us
