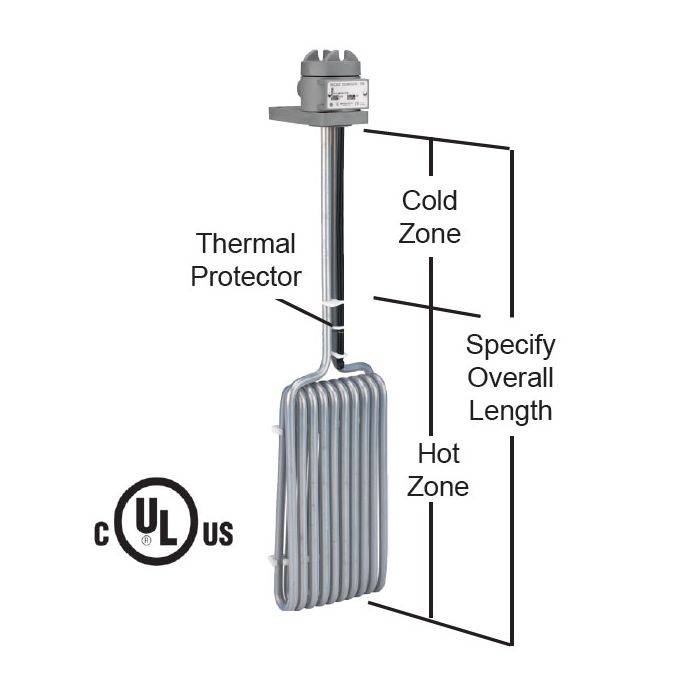

500 watt O shape 1 element PTFE Heater - 6" Hot - 11" Overall

$669.60

CALL FOR AVAILABILITY

SKU

PRT-1EOF-6-11

500 watt, single element, O shape, fluoropolymer, over the side heater. 6" hot zone, 5" wide and 11" overall length. Thermal protection options. 36" wire with conduit. 120 or 240 volt. 1 phase

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

Installation Guide

Details

Excellent chemical resistance to aggressive acids.

FEATURES

PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
Low watt density design 10 watts/square inch (1.5w/cm²).
Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
Certification: cULus. CE certified (except 600 volts).

SPECIFICATIONS

500 watts
120 or 240 volt

OPTIONS AVAILABLE

Resettable thermal protectors
Polypropylene guards (sold separately)
Custom configurations and lengths - Call us
Custom wire and conduit lengths - Call us
