9000 watt 9 Element PTFE Heater - 28" Hot Zone - 35" Overall Length
$2,170.80
CALL FOR AVAILABILITY SKU
PRT-9PTFE-28-35

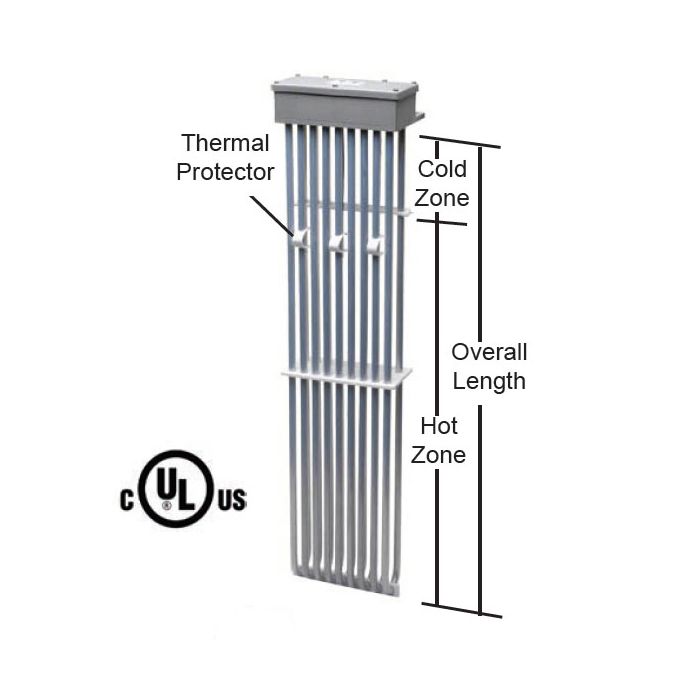

9000 watt 9 element ptfe vertical heater.
28" hot zone and 35" overall length.
Thermal protection options.
36" wire with conduit.
240 or 480 volt.
1 or 3 phase
Excellent chemical resistance to aggressive acids.
FEATURES
- 9 Element PTFE sleeved 304 stainless elements inert to most solutions up to 212°F (100°C).
- Low watt density design 10 watts/square inch (1.5w/cm²).
- Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
- Grounded internal metal element and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
- Certification: cULus. CE certified (except 600 volts).
SPECIFICATIONS
- 9000 watts
- 240 or 480 volt
OPTIONS AVAILABLE
- Resettable thermal protectors
- Polypropylene guards (sold separately)
- Custom configurations and lengths - Call us
- Custom wire and conduit lengths - Call us
