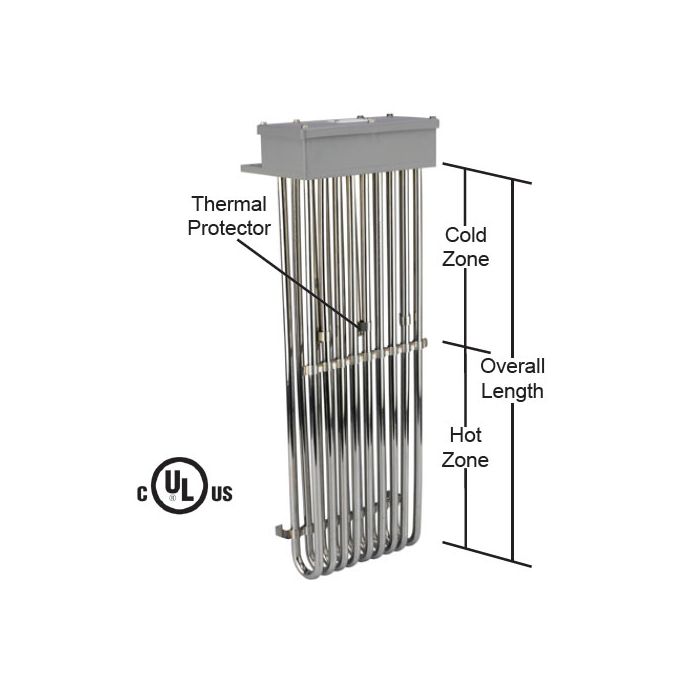

9 Element 13500 watt - 16" Hot Zone - 23" Overall Length

6 Element Tubular Over The Side Heater

• 9 heavy wall 316 stainless steel sheaths.
• Watt densities up to 40 watts/square inch (6.2 w/cm²).
• Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
• Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
• Certification: cULus (except steel and 600 volts)

SPECIFICATIONS

• 13,500 watts
• 240 or 480 volts

OPTIONS AVAILABLE (CONSULT FACTORY)

• Resettable thermal protectors require additional control components
• Custom configurations and lengths
• Custom wire and conduit lengths
