3 Element 7500 watt - 21" Hot Zone - 29" Overall Length

$950.40
CALL FOR AVAILABILITYCALL FOR AVAILABILITY
SKU
PRT-3TSS-21-29
7,500 watt, 3 tube over the side heater. 316 stainless steel 21" hot zone and 29" overall length. Thermal protection options. 36" wire with conduit. 240 or 480 volt. 1 or 3 phase

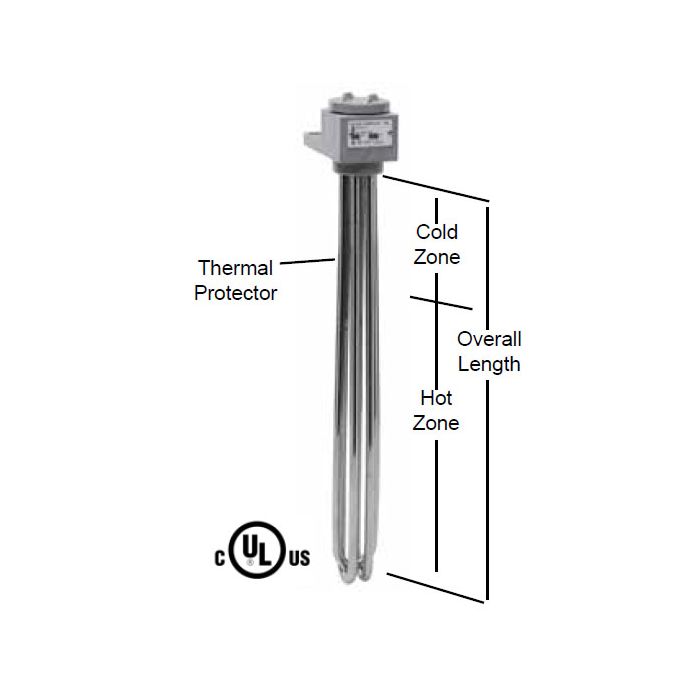

3 Element Tubular Over The Side Heater

  • 3 heavy wall 316 stainless steel sheaths.
  • Watt densities up to 40 watts/square inch (6.2 w/cm²).
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3 ft (.9m) flexible PVC liquid tight conduit.
  • Grounded construction and built in thermal protector. Replaceable P1 protector standard for solutions up to 180°F(82°C).
  • Certification: cULus (except steel and 600 volts)
SPECIFICATIONS
  • 7,500 watts
  • 240 or 480 volts
OPTIONS AVAILABLE (CONSULT FACTORY)
  • Resettable thermal protectors require additional control components
  • Custom configurations and lengths
  • Custom wire and conduit lengths
