Hot Runner Control Panels
Affordable & Powerful Hot Runner Temperature Control for up to 12 Zones

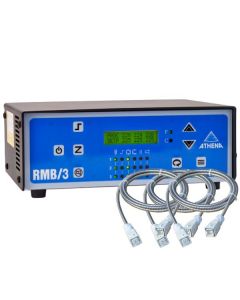

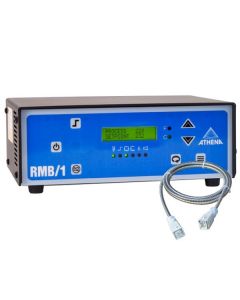

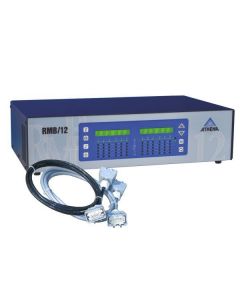

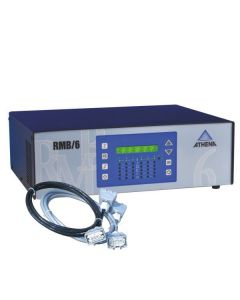

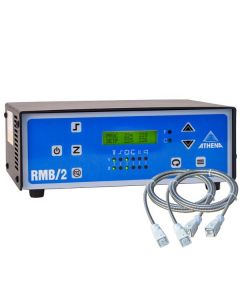

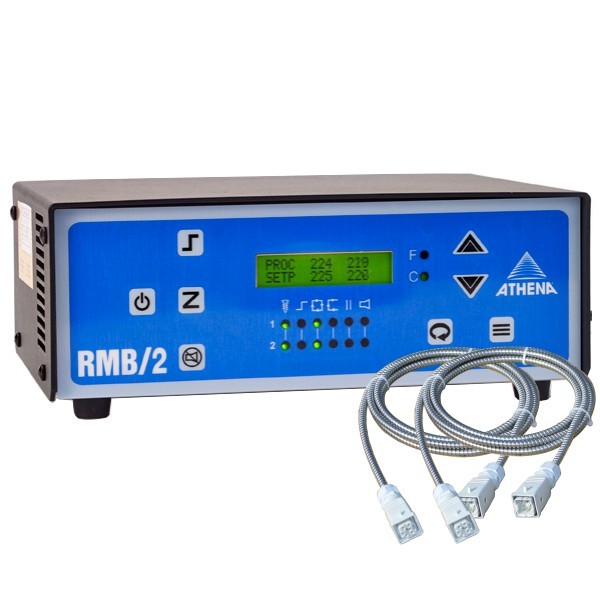

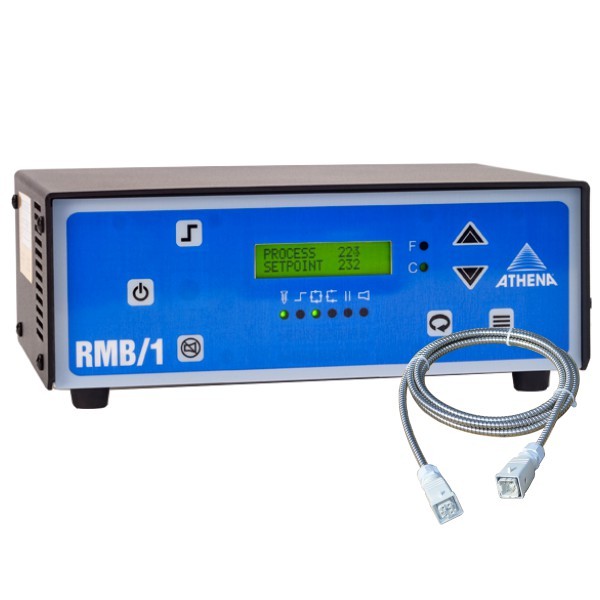

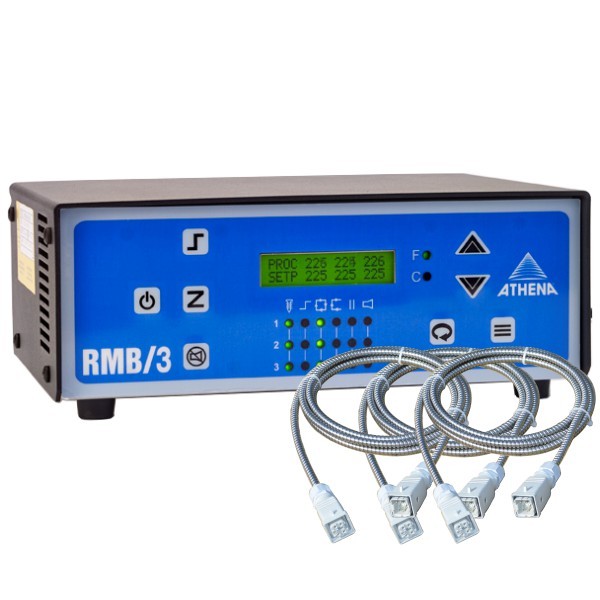

Athena’s new RMB Series non-modular hot runner control systems offer 1,2,3,6 or 12 zones of integrated control in a compact package design at an affordable price. The units are equipped with a full featured user-friendly operator keypad/LCD display and discrete indicators of heat, boost, closed loop, open loop, idle, and alarm for system status.
- Compact package design
- Accepts J or K thermocouple inputs, grounded or ungrounded
- 6 or 12 zones of control with 15 amps per zone - 1, 2 and 3 zone models have 15 amps per cabinet
- Built in loop break, short, open and reverse thermocouple
- Bake out feature prevents moisture at start up
- Adjustable set point limits
- Boost mode for temporary percentage of power output increase
- Remote input standby function
- Remote alarm output contacts
- Fan cooled
