Snow Melt Aerial Sensor

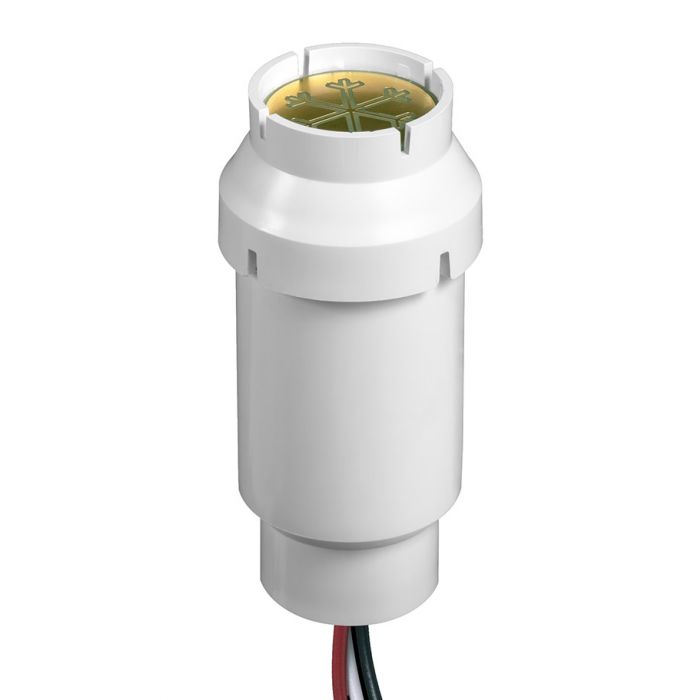

The AIR-SS-2 Aerial-Mounted Snow Sensor provides versatile and cost-effective automatic snow detection for snow melting and roof and gutter deicing systems.
The AIR-SS-2 Aerial-Mounted Snow Sensor provides versatile and cost-effective automatic snow detection for snow melting and roof and gutter deicing systems. Easy to install, the AIR-SS-2 Aerial-Mounted Snow Sensor is appropriate for use with the SC-MZ-TOUCH, SCP-120, and SCA-DUAL controls. It senses both ambient temperature and precipitation, detecting falling or blowing snow at temperatures below 38°F (3.3°C). The included 16-inch, 3-conductor, 18 AWG lead allows for flexibility of installation, allowing sensors to be located at a distance up to 500 feet away from the controller using 22-gauge wires and up to 1000 feet using 18 gauge wires.
Specifications
Electrical
Activation Temperature | 38 F° |
Lead Length | 16 in |
Sensitivity | Temperature and precipitation |
Product Dimensions
Depth | 1.75 in |
Diameter | 1.75 in |
Height | 3.75 in |
Width | 1.75 in |
Installation
Installation Area | Aerial |
Identifiers
SKU | AIR-SS-2 |
UPC (GTIN-12) | 881308065485 |
Warranty / Certifications
Warranty | 2 years |
