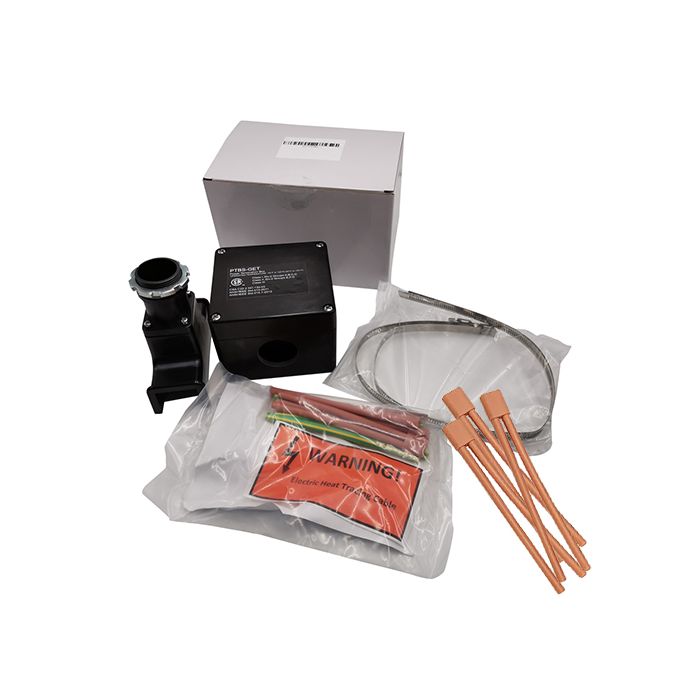

Multi Power Connection Kit
Multi Power connection kit with square junction box. Base kit completes power connection for up to 3 self-regulating heating cables.
The Multi Power Connection Kit is designed to connect power up to 3 heating cables. It is approved by CSA for use in hazardous and non-hazardous areas. The PT-PTBS-GET integrates the functions of connection kits and insulation entries. The rugged stand protects the heating cable and allows up to 132 mm of thermal insulation. The innovative spring clamp terminals provide safe, reliable, maintenance-free operation. The Multi Power Connection Kit contains all the necessary materials for a complete certified installation.
Our Multi Power Connection Kit Provides input power connection for up to 3 self-regulating heating cables.
Enough to complete three input power connections or one input power splice connection.
For use in hazardous area locations with low and mid-temp cable only (CSA approved).
For use in non-hazardous area locations with low and mid-temp cable (non-CSA approved).
Ordinary Locations
Hazardous Location
T6 rated 3, 5, 8, 19 W/ft (10, 17, 25, 31 W/m)
T5 rated 12 W/ft (40 W/m)
Class I Division 2 Groups A, B, C, D
Class II Division 2 Groups E, F, G
Class III
Designed to connect power to HTR heating cables (Up to 3 heating cables connected).
Available for use in hazardous and non-hazardous areas.
Silicone-free core seal for easy installation.
Innovation spring clamp terminals provide safe, reliable, maintenance-free operation.
Integrate the functions of connection kits and insulation entires.
The rugged stand protects the heating cable and allows up to 132mm of thermal insulation.
Specification
Minimum installation temperature: -40℃(-40℉)
Material: Glass-reinforced Polyester, Fire Retardant
