3 w/ft 240v Self Reg Heating Cable TPE Overjacket

Sold by the foot.

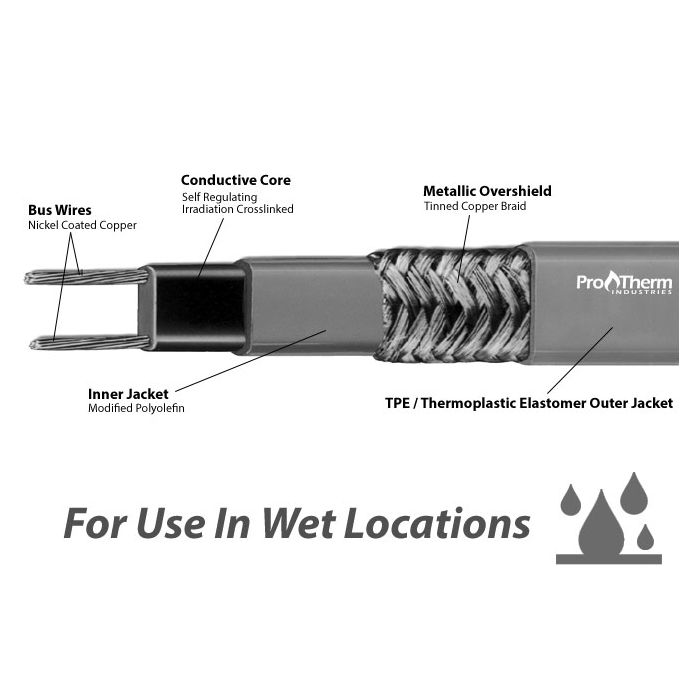

3 watts/ft 240 volt self regulating heat trace cable with thermoplastic elastomer jacket.

Suggested items for your installation:

Connection Kits
Accessories
High Temp Tape
Line Sensing Thermostat
Ambient Sensing Thermostat
Control Panels

Ideal for pipe tracing, freeze protection, and low temperature process maintenance applications up to 150°F (66°C).
Self-limiting: Automatically adjusts heat output based on surface temperature.
Safe to overlap and insulate.
Can be cut-to-length and terminated in the field.
No temperature controller is required. (If a specific process temperature is needed, a temperature controller is required.)

Specifications:

• Continuous maintenance temperature: 150°F (66°C) maximum
• Intermittent exposure temperature: 185°F (85°C) maximum;  -20°F (-29°C) minimum
• 3, 5, 8, or 10 watts/ft (10, 16, 26, or 33 watts/m)
• Supply voltages: 110 - 120VAC or 208 - 277VAC
• Moisture, chemical, and flame resistant
• 16AWG bus wires
• Braid resistance:
  • Tinned copper: 0.003 ohms/ft (0.009 ohms/m)
  • Stainless steel: 0.125 ohms/ft (0.410 ohms/m)
• T-Rating**
  • -T6: 3, 5, and 8 watts/ft (10, 16, and 26 watts/m)
  • -T5: 10 watts/ft (33 watts/m)

** Electrical equipment T-rating codes define the maximum surface temperature that equipment will reach. It is used in hazardous (classified) area applications.

*2E approved for 3 watts/ft and 5 watts/ft only.

Outer Layer Options

Maximum Circuit Length in Feet per Circuit Breaker Size

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment

SLCAB3240BP
