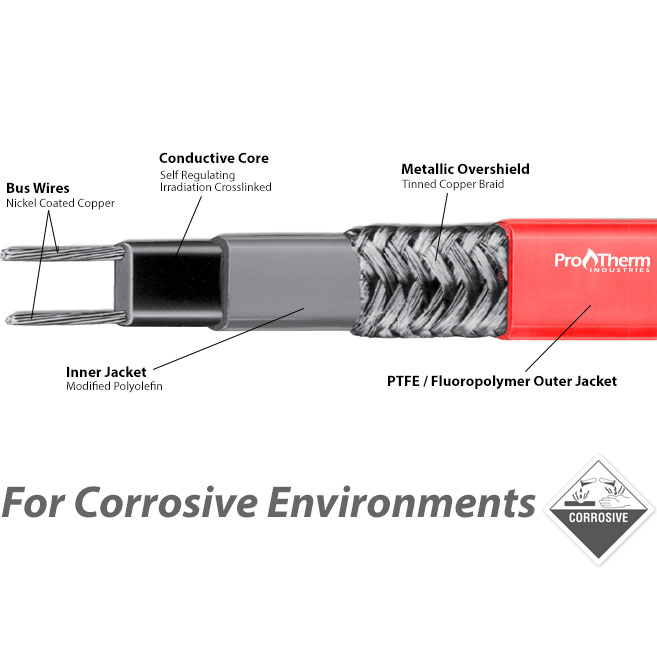

20 w/ft High Temp Self Reg Heating Cable - Fluoropolymer

20 watts/ft high temperature self regulating heat trace cable with fluoropolymer jacket.

Cut-to-length high-temperature self-regulating heating cable is ideal for freeze protection and high temperature process maintenance up to 302°F (150°C). Self-regulating heating trace cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required.

Note: Special consideration must be given for the circuit breaker due to the high-initial in-rush currents.

Specifications:

• Maximum Continuous Maintenance Temperature: 302°F (150°C)
  Intermittent Exposure Temperature Range: -22°F to 392°F (-30°C to 200°C)
  Supply Voltage: 110-120 VAC or 208-277 VAC
  Nominal Power Output at 50°F (10°C):


  • 5, 10, 15, 20 W/ft (15, 30, 45, 60 W/m)
  • For 208 and 277 VAC, adjust watts shown for the 240 VAC cable using the Voltage Adjustment Factors Chart

  Bus Wire Gauge: 16 AWG
  Braid Resistance: Tinned copper 0.0055 ohms/ft (0.0182 ohms/m)
  Bend Radius: 0.5 in (12 mm)
  Note: If a specific process temperature is required a temperature controller is necessary

Outer Layer Jacket

Maximum Circuit Length in Feet per Circuit Breaker Size

Note: Special consideration must be given for the circuit breaker due to the high initial in-rush currents.

Voltage Adjustment
