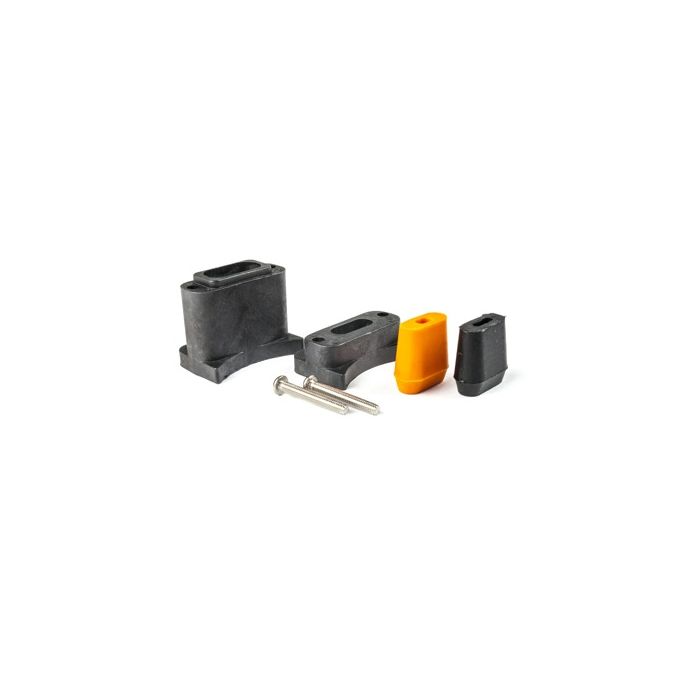

RTES End Seal Fitting For Ordinary and Hazardous Locations

RTES End Seal Fitting is a NEMA 4X rated enclosure designed to terminate heating cables. This model provides waterproof cable entry for one cable, enclosure support and a waterproof corrosion resistant enclosure. The fitting has two different curved mounting surfaces. One side has a 1-1/2" radius curved surface that provides stable support on pipes with a diameter of 3" or more. The other side has a 1/2" radius curved surface which permits a better fit on smaller pipes. In addition, this side also has four “feet” for installation on flat surfaces.

• Cable Entry For 1 Cable
• Fits All Pipe Sizes
• Stainless Steel Hardware
• Corrosion & Weather Resistant Ryton® Construction
• Third-party certifications: UL Listed, CSA, FM

Installation Accessories for Chromalox heat tracing products represents the state of the art in heat tracing. Each model in the series is designed to satisfy the demands of a particular operation. These high quality models combine a variety of functions in a convenient, easy to use and economical package.

Applications

Connection of all Rapid Trace Heating Cables to Customer Supplied Power Wiring in any of the following applications:

• Hydrocarbon and Chemical Product Piping
• Process Temperature Maintenance
• Fluid Flow and Viscosity Maintenance
• Freeze Protection.

Features

• Molded of Durable Plastic Material (Ryton®‚ PPS)1
• High Service Temperature
• Corrosion Resistant
• Integrated Connection Accessories and Controls
• Thermal Stability
• Non-Flammable
• High Strength and Rigidity
• Stainless Steel Hardware to Ensure the Integrity of the System
• Liquid Tight Design prevents moisture from reaching the electrical connections. All models are rated NEMA 4X.
