Non-Hazardous General Purpose Constant-Wattage Heating Cable

$5.72

In stock

SKU

CW12

Wattage & Voltage

Control Panel Requirement

I acknowledge that this item requires a temperature control panel.

Hazardous Area Requirement

I acknowledge that this cable is not approved for hazardous locations.

Qty

Requires a temperature controller!
General purpose, dry locations.
NOT APPROVED For Hazardous Locations.

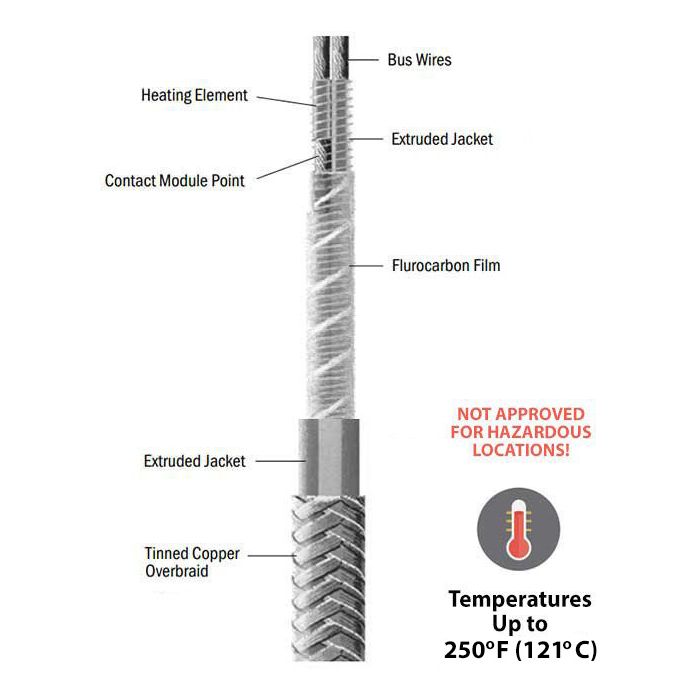

Tinned copper braid for general purpose use.
4, 8 or 12 watts per foot.
120 through 480 volt options.

See Full Description Below

American made heat trace cable
Click here for constant wattage heating cable installation kits.

Sold by the foot - add quantity below.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Downloads 1

Spec Sheet

Details

Tinned copper braid for general purpose area use.
Circuit load: 0.033 amps per foot
Maximum circuit length: 350 foot
Maintains temp to 320°F

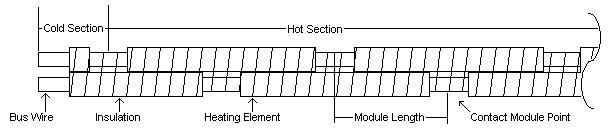

How constant wattage heat trace cable works

Our CW12 general purpose, constant wattage heating cable is a proven, reliable solution for industrial process temperature maintenance and freeze protection. CW12 features a parallel heating core that produces uniform thermal output over its entire length. Using a single power point, you can easily configure and install a heat tracing system as short as several feet or as long as 780 feet right in the field.

Uniform Thermal Output, Low Energy Cost
No Inrush at Any Ambient
Maximum Exposure Temperature, Power Off, 392°F (200°C)
Steam Cleanable on Process Equipment Up to 190 PSIG (Power Off)
Approximate Size 1/4"W x 1/8"H
Minimum Bend Radius 1-1/4"
For Use on Metallic Pipes

WARNING — A ground fault protection device is required by NEC to minimize the danger of fire if the heating cable is damaged or improperly installed. A minimum trip level of 30mA is recommended to minimize nuisance tripping.

Model	Output	Voltage	Circuit Load	Max.Circuit Length
CW124120B	4 W/Ft.	120 volt	0.033 Amps/Ft.	350 Ft.
CW128120B	8 W/Ft.	120 volt	0.067 Amps/Ft.	240 Ft.
CW1212120B	12 W/Ft.	120 volt	0.100 Amps/Ft.	200 Ft.
CW124240B	4 W/Ft.	240 volt	0.017 Amps/Ft.	700 Ft.
CW128240B	8 W/Ft.	240 volt	0.033 Amps/Ft.	480 Ft.
CW1212240B	12 W/Ft.	240 volt	0.050 Amps/Ft.	400 Ft.
CW1212480B	12 W/Ft.	480 volt	0.025 Amps/Ft.	780 Ft.
