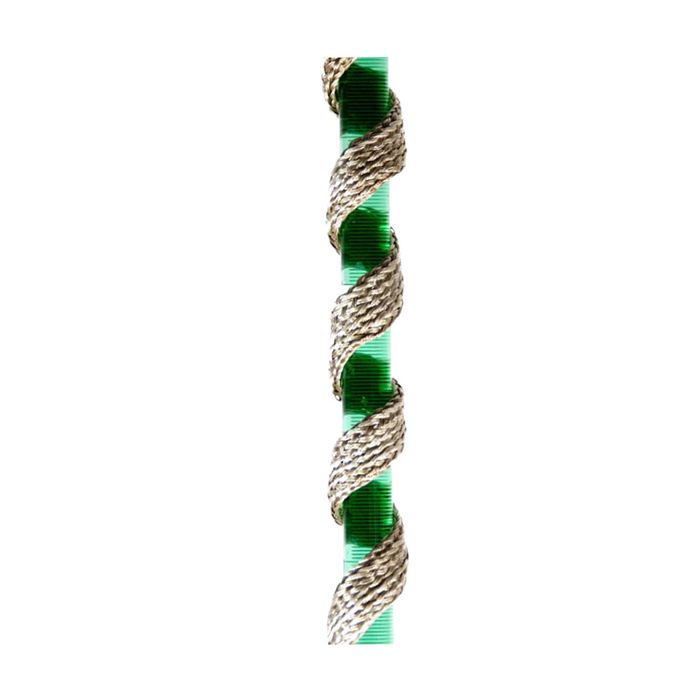

High Temperature Heavy Insulated Heat Tape 1.75" x 24" 313 Watt

1.75" x 24"
High Temperature Heavy Insulated Heating Tape
313 Watts
Available in 120 or 240 volt
Lead Opposite End Option Available

• High-temperature Samox® heating tape with maximum exposures temperatures up to 1400°F (760°C).
• Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
• Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
• Rapid thermal response provides accurate heat when you need it.
• Available in a wide variety of length and width configurations.
• Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
• Safe for use with glass and electrically conductive metal surfaces.
• Choice of power leads on same end or opposite ends to suit your electrical needs.
• Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
• Temperature controller is required for safe operation of this product.
• Built-in split-plug design easily connects to your choice of temperature controlling device.

• Maximum exposure temperature: 1400°F (760°C)
• Construction:
  • Samox® knit and braided heating element
  • Samox® knit and braided outer sheath
• Power density:
  • Standard: 13.1 W/in2 (0.020 W/mm2 )
  • Wide† : 7.7 W/in2 (0.012 W/mm2)
• 24" (610mm) power leads with:
  • 120VAC: Separable 2-prong split-plug (NEMA 1-15)
  • 240VAC: Bare wire connection
