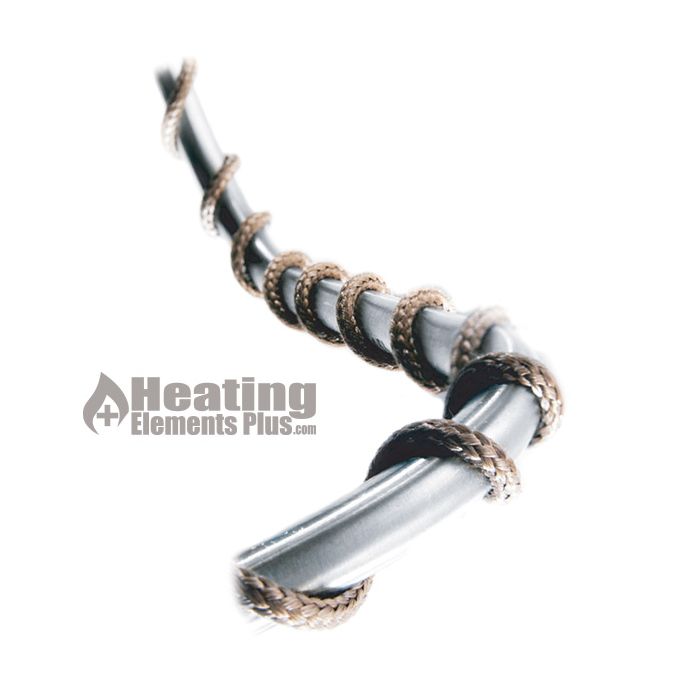

Heating Cord 144 Inches, 260 Watt, 120 Volt HTC451003
$101.64

SKU
HTC451003
144" Length
HTC Heating Cord
260 Watts
120 Volt
144" Length
HTC Heating Cord
260 Watts
120 Volt
- Heating cords designed for use on small tubes, vessels, or any application where space is limited.
- Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.
- Rapid thermal response provides accurate heat when you need it.
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Choice of power leads on same end or opposite ends to suit your electrical needs.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
- Maximum exposure temperature: 900°F (482°C)
- Diameter: 3/16” (4.8mm)
- Construction:
- Fiberglass knit and braided heating element
- Fiberglass knit and braided outer sheath
- Power density:
- Standard: 21 W/in(68 W/m)
- 24" (610mm) power leads with:
- 120VAC: Separable 2-prong split-plug (NEMA 1-15)
- 240VAC: Crimped ferrule wire connection
