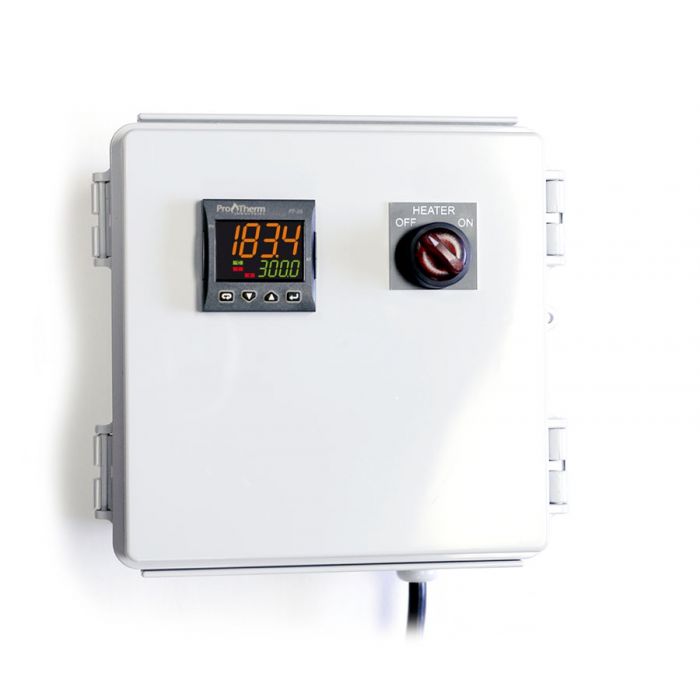

15 Amp Single Zone Temperature Controller

The ProTherm SCP 15 Series relay and solid state output combine the simplicity of a "plug and play" design into one package.

Sold with a type J or K thermocouple input option.
(Please call if you need an RTD input option.)

The SCP 15 Series offers a 1/16 DIN dual digital process controller. For local indication of process valve and setpoint. Control methods include on/off, PID, self tune and manual tune. This controller offers advanced control features for the most demanding temperature or process application. Panels are completely assembled, pre tested and pre wired in a Nema 12 polyester enclosure.

Features:

• 15 amp output
• 120 or 240 volt
• High Impact Polyester Enclosure (8" x 8" x 6")
• Hinged cover with snap latches
• UL94 - 5VA non-flammable UV FI rating
• Poured gasket with tongue and groove closure
• Operating exposure temperatures -4°F to 167°F (-40°C - 75°C)
• Stainless steel mounting brackets included
• Illuminated heater off/on switch
• Output recipticals
• 6' Power input cord with plug included
• Fused output
